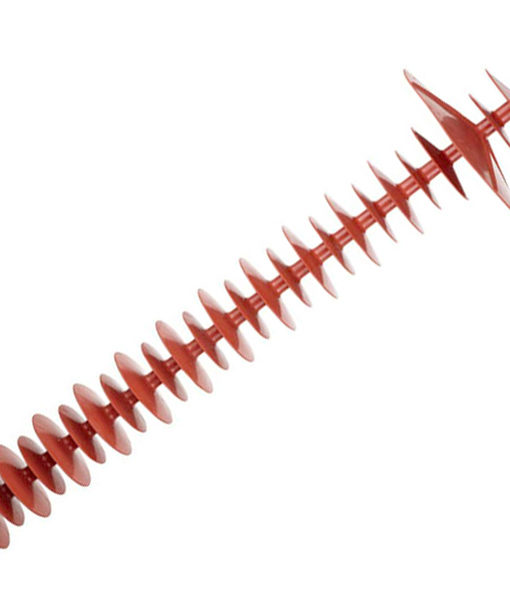

Composite Suspension Insulators FXBW-110/70

Dimensions
Shed Diameter: 250 & 148 & 118mm
Shed Spacing: 80mm
Section Length: 1240mm
Dry Arcing Distance: 1005mm
Leakage Distance: 3150mm
Coupling Size: 16mm

Mechanical Values
Specified Mechanical Load (SML): 70kN
Routine Test Load (RTL): 35kN

Electrical Values
Low Frequency Dry Flashover Voltage: 340kV
Low Frequency Wet Flashover Voltage: 310kV
Critical Impulse Flashover Voltage, Positive: 530kV
Critical Impulse Flashover Voltage, Negative: 550kV

Packing and Shipping Data
Net Weight, Approximate: 5.7kg
